This portable pump cart makes transferring wort and cleaning fermenters and equipment a breeze. The all stainless frame and solid ball bearing wheels make this rugged cart the perfect addition to your pilot system or small brewery. Features a magnetic drive pump coupled to a 1/8 HP TEFC Motor with 1.5” TC fittings in and out. This pump has an impressive flow rate of 17 gallons per minute @ 12 PSI which is enough to properly operate most small spray balls. Add a butterfly or ball valve for complete flow control. With a total draw of 2 amps, this pump will operate on any standard 120v GFCI protected outlet and works with almost any grounded extension cord (also available in 220V for international use). The handle mounted power switch and running indicator light is convenient for easily turning the pump on and off.

Please allow 2-4 weeks for delivery. Call for exact lead time.

This small portable pump is perfect for transferring wort and water around your small brewery or home brewery. The all stainless frame includes (4) non-skid feet and a convenient handle for carrying. Features a magnetic drive Chugger X-Dry pump with 1.5” TC fittings in and out. This pump has a flow rate of 7 gallons per minute and maximum head of 18 ft. Add a butterfly or ball valve for complete flow control. This pump will operate on any standard 120v GFCI protected outlet and works with almost any grounded extension cord.

Buy the Scorpion pump bracket without the pump, and install your own pump. The all stainless frame includes (4) non-skid feet and a convenient handle for carrying. Also includes all necessary hardware for mounting. Fits the following pump models:

• Chugger Classic

• Chugger X-Dry

• March 809/815/H315/H350 (must have flat mounting base with ~60mm x ~66mm on-center mounting holes)

• Other models coming soon!

This is a weldless version of the vorlauf and sparge assembly that we use on the Ruby Pro series brewing systems. It can be adapted to any mash tun with a 13/!6” diameter hole near the top. Please specify approximate length from outside edge of TC fitting to kettle center in comments when ordering for a custom application. Feel free to call with any questions regarding fit, assembly or operation. Does not include clamp or gasket (those can be ordered separately). Please note that this version does fit Alpha Ruby and Fusion series brewing systems.

This is the tri-clamp vorlauf and sparge assembly that we use on the Ruby Pro series brewing systems. It can be adapted to any mash tun with a full diameter welded 1.5” TC fitting near the top. Please specify approximate length from outside edge of TC fitting to kettle center in comments when ordering. Feel free to call with any questions regarding fit, assembly or operation. Does not include clamp or gasket (those can be ordered separately). Please note that this version does not fit the Alpha Ruby and Fusion series brewing systems. We do offer a weldless version that will fit those systems available here

Fully assembled element assembly designed to fit a standard tri clamp port (select size option below)

1.5” TC - Measures approx. 2” flange diameter

2” TC - Measures approx. 2.5” flange diameter

Includes:

• (1) 30 Amp Twist Lock Plug (NEMA L6-30)

• (1) 11.5’ Cord

• (1) 208-240V 5.5kw Ripple Type ULWD Stainless Element

  • 23A / 5500W @ 240V

  • 20A / 4130W @ 208V

Element designed to fit a standard tri clamp port (select size option below)

1.5” TC - Measures approx. 2” flange diameter

2” TC - Measures approx. 2.5” flange diameter

Includes:

• (1) 208-240V 5.5kw Ripple Type ULWD Stainless Element with integrated wiring housing and cable gland

  • 23A / 5500W @ 240V

  • 20A / 4130W @ 208V

These high capacity hop filters are perfect for keeping hops contained in your boil kettle while still allowing excellent extraction. The adjustable hook allows you to lower the filter down into your boil for maximum exposure. Unlike traditional hop spiders that hang in the center of your kettle, these filters hang on the edge so that you still have good access for stirring.

Click here to view our blog post on even more uses for stainless steel hop filters

March Pump's 815-SS Beer Pump is an American manufactured seal-less centrifugal magnetic drive pump ideal for beer brewing. It is capable of generating a maximum flow of 7 gallons per minute at 4.5 feet, and its maximum head is 18.6 Feet (or around 8PSI). The standard wet end (the materials that come into contact with the solution) is composed of Stainless Steel, Teflon, Silicone and Ryton/Teflon/Glass. The inlet connection is 0.5 inch male pipe thread, and the outlet is 0.5 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.04 Horsepower fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The 815-SS Beer Pump motor has a six foot cord, a plug, and a base. The maximum internal pressure the pump can tolerate is 150PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius

Diaphragm valves offer the highest level of sanitation coupled with precision flow control. These are the perfect valve for controlling mash tun runoff and restricting flow from magnetic drive pumps. These 1” valves are compatible with both 1” and 1.5” TC fittings (same flange size). High quality 316 stainless steel.

These quick clean sanitary ball valves are perfect for pump outflow control or any application that would benefit from a ball valve that is super easy to completely disassemble for cleaning.

Beech Hardwood with Beveled End

• 35.5” Wooden handle, with 3.25” wide perforated paddle

• (2) 1.5” Diameter mash holes

• Mash holes allow grain to pass through

• Optional laser engraving (max dimensions 1.5” x 16”)

• Email the image for engraving to: questions@rubystreetbrewing.com

  • Include your order number and phone number in the email

  • If you just want simple wording, provide the exact working you need and preferred font

These in-line sight glasses are the perfect way to monitor the clarity of your wort during vorlauf. With 1.5” TC fittings on both ends, you can easily attach one to the outflow side of your wort pump, or on the inlet fitting at the top of your mash tun. Remember to order additional clamps and gaskets as needed to attach.

We offer our all stainless 50’ weldless HERMS coils for sale in (2) different coil diameters and several configurations:

10” Diameter Coil:

- Minimum kettle inside diameter - 15”

- Mounting hole measurement (center to center) - 9.75”

- Mounting hole size for weldless installation - 7/8”

14” Diameter Coil:

- Minimum kettle inside diameter - 18.5”

- Mounting hole measurement (center to center) - 6.75”

- Mounting hole size for weldless installation - 7/8”

Fits 1/2” & 3/4” TC Fittings

Replacement silicone manway door gasket for all Ruby Pro and ONYX series systems

This is the small gasket that fits the wort side of the Pro Nano series plate chillers.

Fits 1/2” and 3/4” TC Fittings

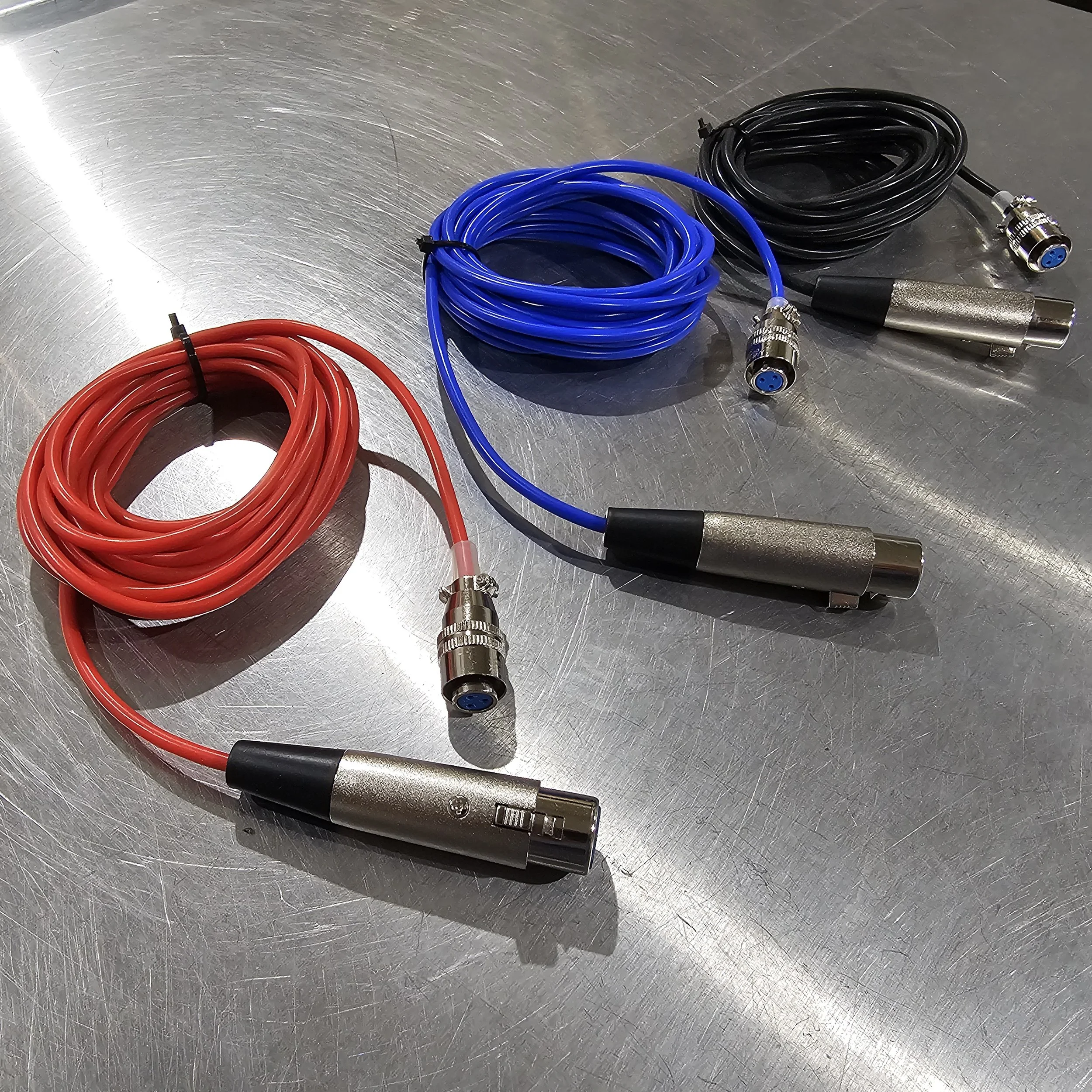

These 12’ long sensor cables fit our full electric brewing systems that require push to connect type sensors (Fusion, Alpha, Mega, and ONYX series systems only). These will not work with our gas fired systems or our Pro series systems.

Available in red, blue , black (please note color preference in order notes).

Sensor cable fits all Ruby Pro series gas fired brewing systems. 3 Lengths available:

1 Meter - HLT

2 Meter - MASH

4 Meter - BOIL

15’ Foot sensor cable fits Ruby Pro series electric brewing systems.
