2 BBL GAS BATCHES

The Alpha Ruby™+ SIDEKICK 4 vessel (2 bbl)

Our Alpha Ruby series brewing system is available in a 4 vessel (2 Mash Tun / 2 Boil Kettle) configuration making it a 2 BBL capable brewery. With the addition of a separate HLT or on-demand hot water source this system will brew (2) simultaneous 1 BBL batches. This is one of our most capable and flexible brewing system with a finished batch size range from 15 gallons to 65 gallons. It also affords you the ability to brew (2) separate 1 BBL recipes simultaneously. This system can be used as a stand-alone 1 BBL brewery with the second boil kettle serving as an HLT. It can also be configured as a highly efficient back to back progressive 1 BBL brewing system utilizing the second boil kettle as a wort receiver and one of the mash tuns as an HLT. Add the digital control package for full electronic ignition on all 4 vessels and PID temperature control on both mash tuns.

Shown with Options: Digital Control, Plate Chiller

Complete System Includes:

  • (1) Alpha Ruby Frame - Welded Steel Construction (powder-coated)

  • (1) Sidekick Frame - Welded Steel Construction (powder-coated)

  • (4) 50+ Gallon Stainless Steel Kettles with Internal Volume Markings (gallons/liters) and Lids

    (4) 10" Cast Iron Burners (with gas manifold & regulator)

  • (4) Stainless Steel False Bottoms

  • (4) Thermometers

  • (3) Stainless Steel Pumps (with remote On/Off switch)

  • (4) Thru Wall Return Fittings (mash tuns & boil kettles)

  • All SS Tri-clover Fittings & Platinum Cured Silicone Tubing

  • Complete Owners Manual (with 1 year limited warranty)



Reviews

"Thanks again for being so great to work with! I've been telling every brewer and potential brewer about Ruby Street. One guy asked me, "Why did you buy the Ruby Street? This other system is cheaper." I told him that it was because your turnaround time was faster and more importantly, I was able to speak with YOU, and you and your staff have provided great support, and unlike others, you never make me feel stupid. Refreshing."

 - Phil Wages, Wages Brewing Company - West Plains, MO



"Dear Ruby Street, When our seven barrel system didn’t arrive on time, and wouldn’t for another two months your company saved our bacon.  We purchased the Alpha Ruby from you and some plastic fermenters online. The Alpha showed up in four days and we started brewing our butts off. Thanks for the outstanding product.

 - Nate Hardy, Gillette Brewing Company - Gillette, WY



Specifications

  • Alpha Ruby + SideKick System Dimensions: 109.5” wide x 32” deep x 48” high (height includes kettles)

  • Natural Gas or Propane conversion kits available for all gas-fired systems




Popular Add On Options

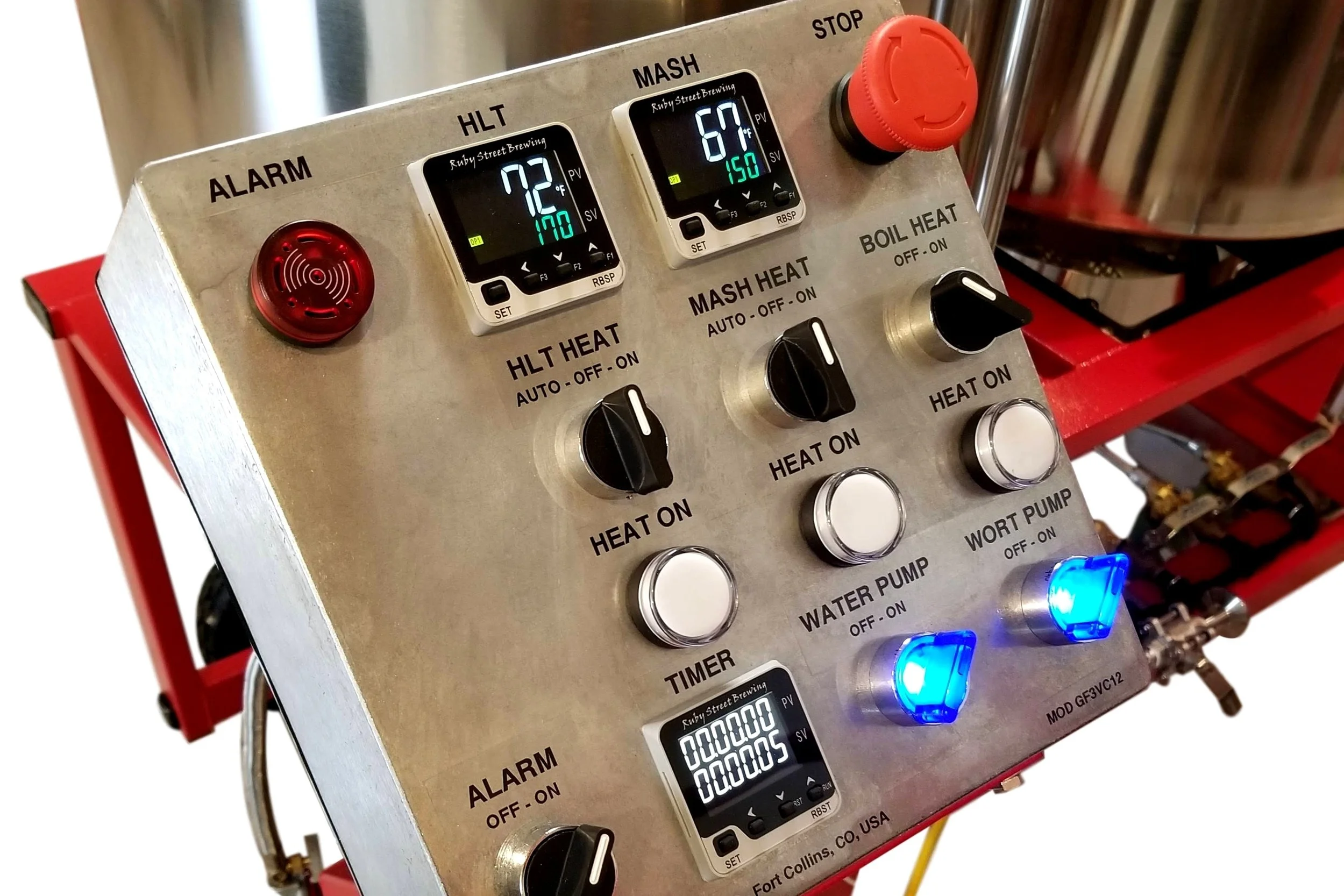

Digital Control Package

This digital controller offers one convenient control panel for temperature control of the mash tuns and boil for all 4 burners.

Plate Chiller Package

Plate chiller is mounted to frames for efficiency and convenience.

Whirlpool Arm

Our all stainless steel Whirlpool Arm provides for clearer wort, faster chilling and optimum hop utilization.

In-Line Sight Glass

Monitor the color and clarity of your wort by attaching this sight glass to the outflow side of your wort pump.


Build your system:


Similar Systems:

Alpha Ruby (45-50 Gal Electric)

Designed as a Nano Brewery / Pilot Brewery, this system features 45-50 Gallon Kettles and will brew a true 1 bbl (31 gallon) batch.  Featuring two stainless pumps and all 1.5" tri-clover connections, this brewery has found it's niche as an economical option for brew pubs, large breweries, and garage fanatics.  The electric version is silent, efficient, and fast.  Best of all, it's safe for indoor use.

Alpha Ruby II (50 Gal Electric)

If you already have an HLT or On-demand hot water source this system is the perfect 1 BBL pilot for breweries with limited space. Compact and portable, the Alpha Ruby II features our innovative variable power internal RIMS heater on the Mash Tun. Internal RIMS means fewer connections, easier cleaning, faster step mashes and more consistent mash temps. System includes (2) 50 gallon kettles for a true 1 BBL (15-31 gallon) batch.

Alpha Ruby II (45-50 Gal Gas)

If you already have an HLT or On-demand hot water source this system is the perfect 1 BBL pilot for breweries with limited space. Compact and portable, the Alpha Ruby II offers all of the benefits of the popular Alpha Ruby at a fraction of the cost. Offered with 45 or 50 gallon kettles for a true 1 BBL (15-31 gallon) batch. The frame even stands on-end for out of the way storage.
