H100-5 (100A 3-vessel HERMS, 5 Element) Variable Power RIMS

H100-5 (100A 3-vessel HERMS, 5 Element) Variable Power RIMS

$3,030.00

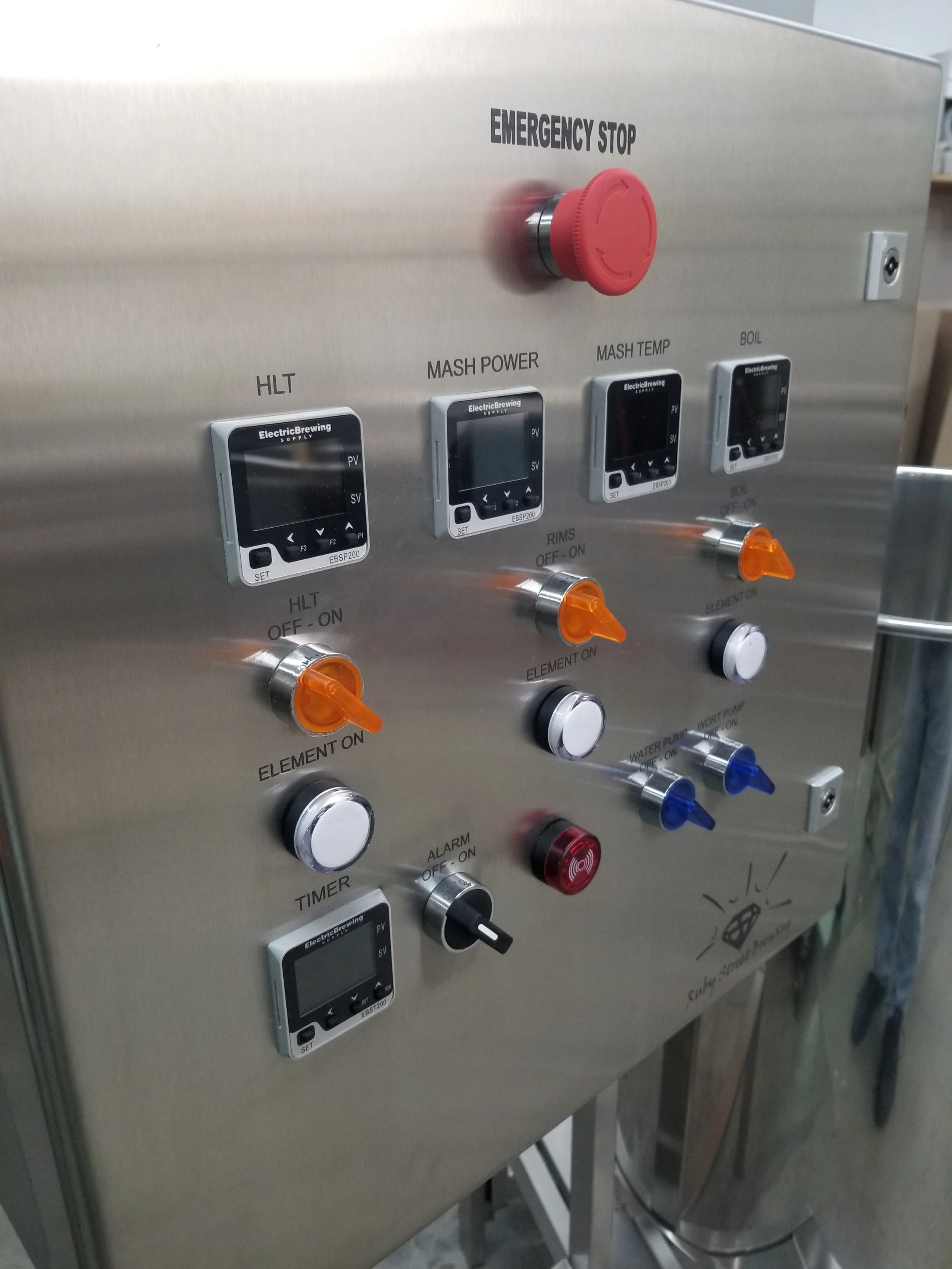

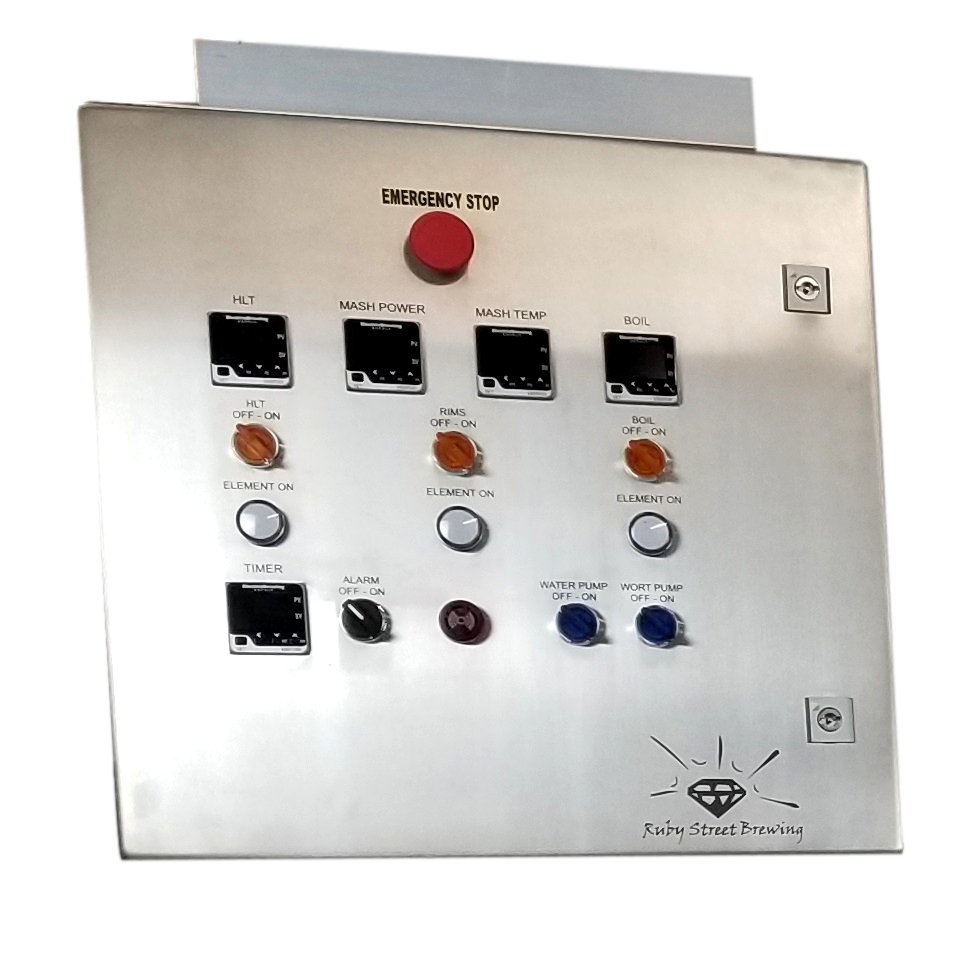

Ruby Control R100-5

Professional 3-Vessel RIMS Control with Variable Element Power. Built to Last.

Take complete control of your electric brewery with the Ruby Control R100-5 RIMS Brewing Controller. Designed for 3-vessel RIMS brewing systems up to 1 BBL, the R100-5 combines high-output HLT and Boil Kettle heating with Ruby Street Brewing's proven Variable Power RIMS Control for exceptionally precise mash temperature management.

The R100-5 controls five electric heating elements—two for the HLT, two for the Boil Kettle, and one dedicated RIMS element. Dual 50A power inputs and integrated electrical interlocks manage available power throughout the brewing process while providing the heating capacity needed for larger electric systems.

Unlike conventional RIMS controllers that often rely on lower-wattage heating elements to minimize temperature overshoot and reduce the risk of scorching, the R100-5 can control a RIMS element up to 6,000 watts while allowing the brewer to independently adjust how much power is delivered to that element.

Run the RIMS element at full power when you need rapid heating, then reduce its maximum power output during wort recirculation for smooth, precise mash temperature control. This gives you the heating capacity of a larger element when you need it—and the gentle, controlled heat of a smaller element when you don't.

It's a control method we've used for years on our Ruby Pro electric brewing systems, providing fast heating, precise mash control, and exceptional flexibility from a single RIMS element.

Unlike many imported controllers, every Ruby Control panel is designed, assembled, wired, and tested in Colorado using industrial-grade components—not consumer electronics. Every panel is professionally wired, function tested under load, and backed by the lifetime customer support Ruby Street Brewing is known for.

Why Choose Ruby Street?

Designed, built, and tested in Colorado
Proven Variable Power RIMS technology used in our Ruby Pro electric brewing systems
Industrial-grade components throughout
No proprietary parts—serviceable with readily available industrial components
Every controller is professionally wired, inspected, and function tested under load before shipment
Real lifetime technical support from experienced brewers who know the equipment

Variable Power RIMS Control

The R100-5 uses two dedicated controllers working together to manage the RIMS heating element.

One controller sets the maximum percentage of power available to the RIMS element, while the second monitors wort temperature and cycles the element as needed to maintain the desired temperature setpoint.

This dual-control approach provides the best of both worlds:

Supports a RIMS heating element up to 6,000 watts at 240V
Use up to 100% element power when rapid heating is needed
Reduce available element power during wort recirculation for precise, gentle heating
Effectively allows a high-output RIMS element to behave like a lower-wattage element when desired
Helps minimize temperature overshoot
Helps reduce the potential for wort scorching during recirculation
Provides rapid heating and fine temperature control from a single RIMS element

Big Element When You Need It. Small Element When You Don't.

Traditional RIMS systems often use lower-wattage elements because a high-wattage element operating at full output can apply heat too aggressively during wort recirculation.

Ruby Street's Variable Power RIMS Control allows you to electronically reduce the effective output of the RIMS element to match the brewing process.

A RIMS element up to 6,000 watts can provide full heating capacity when bringing water to temperature, then be turned down to a fraction of its available output while the temperature controller automatically cycles the element to maintain your mash setpoint.

The result is faster initial heating without sacrificing the precise, gentle temperature control that makes RIMS brewing so effective.

Complete 3-Vessel RIMS Brewing Control

Dedicated PID temperature control for the Hot Liquor Tank (HLT)
Dedicated temperature control for the RIMS loop
Independent percentage power control for the RIMS heating element
Precise manual % power control for the Boil Kettle
Five heating-element outputs:
- Two HLT element outputs
- Two Boil element outputs
- One Variable Power RIMS element output
Four HLT/Boil outputs support 240V heating elements up to 5,500 watts each
RIMS output supports a 240V heating element up to 6,000 watts
Integrated electrical interlocks manage available power and element operation
Compatible with PT100 RTD temperature sensors (sold separately)
Independent digital brew timer with audible alarm
Programmable temperature alarms
LED heating-element status indicators
Independent pump controls for typical RIMS brewery operation

Buying a 1 BBL Electric Brewing System Without a Control Panel?

We've got you covered.

The Ruby Control R100-5 may be the perfect fit. It's purpose-built for the popular 3-vessel, 5-element RIMS configuration used on many 1 BBL electric brewing systems.

With dual 50A power inputs, five heating-element outputs, integrated power-management interlocks, and our proven Variable Power RIMS Control, the R100-5 provides a complete control solution in one professionally built and tested package.

Whether you're purchasing a new brewing system that doesn't include controls or replacing an existing control panel, contact us to discuss your equipment configuration and compatibility.

Professional Construction

Heavy-duty stainless steel enclosure
Industrial laser-engraved faceplate—no labels or decals to peel or fade
Professionally wired and inspected
High-temperature, oil-resistant wiring
Wire ferrules used on stranded wire terminations for maximum reliability
DIN rail mounted industrial components
Industrial terminal blocks
Modular internal layout for simplified servicing and future maintenance
Replaceable industrial contactors
Designed for years of dependable service

Electrical Specifications

Dual 208–240 VAC, 50 Amp power inputs
Two NEMA 14-50 power connections
Designed for 3-vessel electric RIMS brewing systems up to 1 BBL
Five heating-element outputs:
- Two HLT
- Two Boil
- One RIMS
HLT and Boil outputs support 240V heating elements up to 5,500 watts each
RIMS output supports a 240V heating element up to 6,000 watts
NEMA L6-30R heating-element receptacles
Variable percentage power control of the RIMS heating element
Integrated electrical interlocks manage simultaneous element operation within the controller's available electrical capacity
120V pump receptacles
Illuminated rotary pump ON/OFF controls
LED heating-element active indicators
Two 6-foot power cords with NEMA 14-50 plugs
Neutral required for onboard 120V circuits

Safety Features

Safety was designed into every Ruby Control controller.

Industrial contactors disconnect both hot legs from heating elements when de-energized
Integrated electrical interlocks manage heating-element operation and available power
Internal circuit breaker protection on branch circuits
Replaceable industrial contactors
Designed for operation from properly protected GFCI circuits

Ideal Applications

3-Vessel RIMS Brewing Systems up to 1 BBL
New 1 BBL electric brewing systems sold without a control panel
Existing 1 BBL systems requiring a replacement or upgraded controller
Ruby Pro-style electric brewing systems
Systems using dual heating elements in the HLT and Boil Kettle
RIMS systems requiring both rapid water heating and precise mash temperature control
Systems using higher-output RIMS heating elements
Home, pilot, and small-scale electric breweries

Included

Ruby Control R100-5 Variable Power RIMS Brewing Controller
Two 6-foot power cords with NEMA 14-50 plugs
6-foot pump extension cords with standard NEMA 5-15 cord ends

Temperature sensors, heating elements and element connection cables sold separately.

Warranty & Support

Every Ruby Control controller is backed by a 1-Year Limited Warranty and our unmatched Lifetime Technical Support. Whether you have a question during your first brew or years down the road, our team is here to help.
